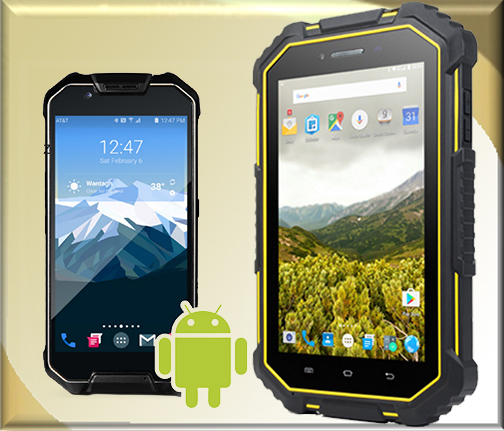

Cedar Handhelds PC's

Rugged phone and tablet

As far as toughness and reliability go, our rugged handhelds simply can’t be beat. But some applications just don’t need that level of ruggedness, nor the amount of support that our handhelds provide. And for those, we offer our Cedar line of handhelds— the perfect mesh of ruggedness and affordability that gives you exactly what you need at a price you’ll love.

What’s more, Cedar products run Android® OS, providing you with thousands of field-ready business apps and Google services.

Now running Android 6.0 with a speedy new processor, the CT7G Rugged Tablet is ready to ramp up your data collection process in tough environments. It’s got the outdoor visibility you need on a large, 7-inch display, a battery with enough juice to run all day long, and the ruggedness required to perform reliably in any environment. Not only that, but the CT7G also provides the versatility to choose from thousands of business-ready apps on the Google Play Store. All of this and more, at an affordable price that makes the CT7G an easy choice. So put down that fragile smartphone, pick up the CT7G, and get out there.

CT7G Specifications

PROCESSOR

MediaTek MT6735 64-bit quad-core

OPERATING SYSTEM AND SOFTWARE

Android 6.0 operating system

Multiple languages supported

PHYSICAL

Dimensions: 215.56 x 135.8 x 18.9 mm

Weight: 1.3 lbs

CELL MODEM

4G LTE

All major US and EU carriers

DISPLAY

Active viewing area: 7” (178 mm)

High-visibility HD IPS display

Resolution: 800 x 1280

Portrait or landscape orientation with automatic screen rotation

CAMERA

Front: 2 MP

Rear: 13 MP

TOUCH SCREEN

Projected capacitive touch screen

MEMORY

Storage: 16 GB

RAM: 2 GB

Micro-SD card: up to 32G

BATTERY

7000 mAh Li-Ion battery

PORTS

Micro USB (5 pin)

3.5 mm audio jack

USB OTG: supports mouse & keyboard,also used for charging

KEYPAD

Three function keys: menu, back, home

Three side keys: two volume, power,camera, reset

RUGGEDNESS

IP68 waterproof and dustproof

Drop-tested to 3′ onto concrete

SENSORS

NFC

E-Compass

G-sensor

Three-axis gyroscope

Distance/light sensor

Geomagnetic sensor

GPS/GNSS

GPS + GLONASS receivers

WIRELESS CONNECTIVITY OPTIONS

Bluetooth® 4.0 wireless technology

Wi-Fi® IEEE 802.11 b/g/n

Near-field communication

FM radio

USB disk

Dual-SIM card slot

The Cedar CT5 Rugged Handheld gives you the rugged durability you need at a price that you won’t bat an eye at. The CT5 takes on big upgrades over its predecessor to provide you with a new and improved Android® 6.0 operating system, faster, more powerful processing capabilities, longer battery life, greater memory, and more. And with thousands of available apps to choose from, the CT5 is ready and waiting to get to work.

CT5 Specifications

SYSTEM

Operating System: Android 6.0

Processor: MTK 6755 Octa-core 2.0 GH

STORAGE

Memory (RAM): 3 GB

Internal Storage (max): 32 GB

RUGGEDNESS

Ingress Protection: IP68 waterproof & dustproof

Shock/Drop: Up to 3′ (0.91 m) to concrete

Operating Temperature: 5 F to 131 F (-15 C to 55 C)

CONNECTIVITY

4G LTE, Dual Micro SIM Card Slots

Wi-Fi®: IEEE802.11 a/b/g/n

Bluetooth® 4.1

GPS + GLONASS

FM Radio

NFC

PHYSICAL

Weight (includes battery): 0.56 lbs (225 g)

Dimensions: 152.3 x 81 x 16.6 mm

CAMERA

Front: 5 MP

Rear: 13 MP

TOUCH SCREEN

Capacitive

PORTS

AC Adapter: 110~240 V

Micro USB

DISPLAY

High-visibility HD IPS display

Screen Size (diagonal): 4.7” (119 mm)

Screen Resolution: 720 x 1280

Screen Orientation (primary): Portrait

CERTIFICATIONS
