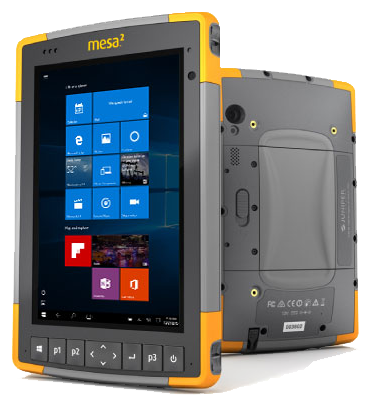

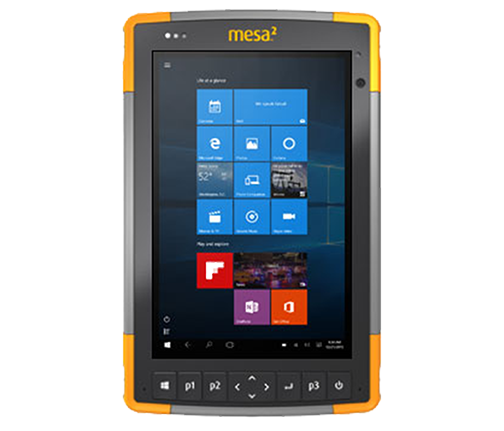

Mesa 2

Rugged Tablet

Your office Anywhere! The Mesa 2 is a sleek, ultra-rugged package that can go with you into the harshest environments out there. Running Windows® 8.1/10, the new Mesa 2 Rugged Tablet brings powerful functionality to your mobile data collection, featuring a vast, 7-inch, extra-bright display for easily viewing maps or large images, all-day battery power lasting up to 15 hours, and of course.

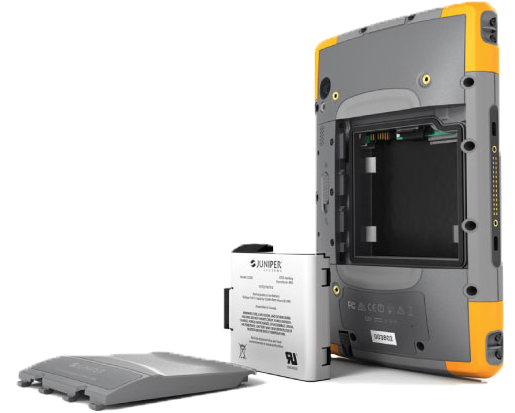

Long Lasting Power Source: The Mesa 2 has a built in battery and a battery compartment where a second battery is connected. This secondary battery can be removed and charged by the user while the Mesa 2 chargers for hot swaps. On it’s own the Mesa 2’s battery last for 8 – 10 hours, the additional battery adds 4 – 5 hours for those extra long days.

Long Lasting Power Source: The Mesa 2 has a built in battery and a battery compartment where a second battery is connected. This secondary battery can be removed and charged by the user while the Mesa 2 chargers for hot swaps. On it’s own the Mesa 2’s battery last for 8 – 10 hours, the additional battery adds 4 – 5 hours for those extra long days.

Powerful Windows OS: Running a full Windows OS, you can carry out the entire data collection process from start to finish on your Mesa 2. Full Windows operating system also means you’ve got a wide range of data collection software and apps to choose from.

Ultra Rugged: The Mesa 2 has an impressive IP68 rating, and is designed to exceed MIL-STD-810G for water, humidity, sand and dust, vibration, altitude, shock, and temperature. With a racing-fast processor, extra-long battery life, and unbeatable ruggedness, the Mesa 2 is designed for maximum efficiency in the harshest environments. It features a larger display than any previous Juniper Systems device, yet, the Mesa 2 is lightweight and ergonomic, minimizing fatigue while improving productivity. With all the functionality of a desktop computer packed into a tough, mobile device.

YOUR OFFICE, ANYWHERE

Introducing… your new office. In a sleek package with the highest-rated protection against water and dust, the Mesa 2 Rugged Tablet can go with you into the harshest environments out there. Running Windows 10, the new Mesa 2 brings powerful functionality to your mobile data collection, featuring a large, 7-inch, extra-bright display for easily viewing maps or images, all-day battery power lasting up to 15 hours, and of course, the unmatched ruggedness that Juniper Systems is known for.

With a full Windows operating system, you can carry out the entire data collection process from start to finish on your Mesa 2. Snap a photo, record field notes, or capture a GNSS location, and then analyze the data you just collected using the Mesa 2. Or, quickly transfer your data to another computer or network using one of these ways. Its racing-fast processor and lightweight, ergonomic design ensure maximum efficiency and minimal fatigue. With all the functionality of a desktop computer packed into one ultra-tough tablet, the Mesa 2 will truly become your office, anywhere.

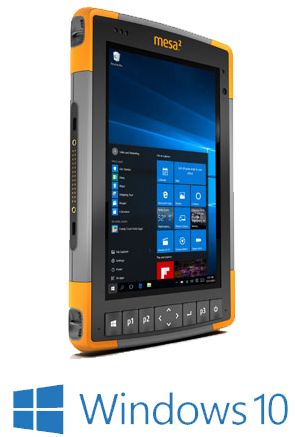

POWERFUL WINDOWS OS

The days of needing multiple devices to collect and analyze data with are gone. Running Windows 10, the Mesa 2 Rugged Tablet provides users with powerful functionality in the field—making the use of a desktop computer simply… optional.

Having a full Windows operating system also means you’ve got a wide range of data collection software and apps to choose from, making it easy to find a solution that fits your needs perfectly.

JUNIPER RUGGED

The Mesa 2 Rugged Tablet is built ultra-tough for unwavering reliability in the most rugged conditions out there. As the only Windows tablet on the market with the highest protection against water and dust, the Mesa 2 has an impressive IP68 rating, and is designed to exceed MIL-STD-810G for water, humidity, sand and dust, vibration, altitude, shock, and temperature. Translation: this thing is a tank. No matter if you’re working in hot or cold, wet or dusty conditions, consider the Mesa 2 your office, anywhere.

BIGGER, BOLDER, BETTER DISPLAY

The Mesa 2 features a larger, brighter, 7″ display, providing more viewing area than any other Juniper Systems device before. Using specialized IllumiView™ technology, the Mesa 2’s display provides best-in-class outdoor visibility and clarity, along with stunning Intel® HD Graphics.

LONG BATTERY LIFE = MORE WORK DONE

Mesa 2 Battery

There’s nothing that will bring your work to a halt faster than a dead battery. That’s why the Mesa 2’s battery lasts a full 8–10 hours on one charge to easily get you through a whole work day and even longer. Think you need more than that? You can even opt for an additional built-in battery that provides an extra 4–5 hours of runtime, plus hot-swap capability for easily changing batteries during those extra long days that take you into overtime.

On top of that, the Mesa 2 battery has an outstanding life cycle—so long, in fact, that you shouldn’t need to replace it for the Mesa 2’s entire lifetime! It’s also optimized for strong performance in cold temperatures, meaning you’ll get enhanced battery life, no matter what environment you’re working in.

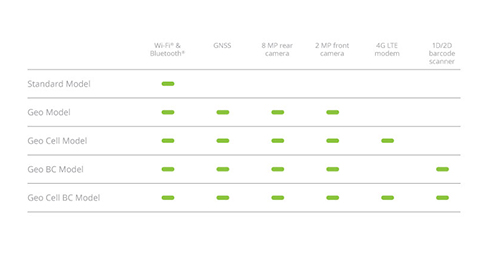

Mesa 2 ChartMESA 2 STANDARD CONFIGURATIONS

OPTIONAL CONFIGURATIONS

Integrated Long Range (UHF-RFID)*

RS-232 9-Pin D-Sub*

Upgraded GNSS with External Antenna Port*

Built-In Battery + Hot-Swap Capability (4-5 hrs additional power)

128 GB Storage

Mesa 2 Brochure



Mesa 2 With Duel Battery Specifications

PROCESSOR

Quad-core Intel® Atom™ Z3745

OPERATING SYSTEM AND SOFTWARE

Microsoft® Windows 10 & Optional Windows 8.1

Multiple languages supported (English, French, Spanish, German, Portuguese)

Windows Office must be purchased separately.

Other options available, please contact Fort Supply for more details.

MEMORY AND DATA STORAGE

4 GB RAM (LPDDR3)

64 GB or 128 GB flash storage options

User-accessible MicroSDXC card slot

GRAPHICS

Intel® HD Graphics

DISPLAY

Active viewing area: 7″ (178 mm)

Resolution: WXGA (1280 x 800)

High-visibility backlit LCD for best-in-class sunlight view-ability

Portrait or landscape orientation with automatic screen rotation

TOUCH SCREEN

Projected capacitive multi-touch interface for use with gloves, small tip stylus, and in wet conditions

Optically bonded for increased visibility and strength

Chemically-strengthened Dragontrail™ High Ion-Exchange (HIE™) coverglass for excellent impact and scratch resistance

KEYBOARD

Adjustable LED backlit keys

Four-way directional navpad

Windows/home key

Power key

Enter key

Three user-programmable function keys

OEM configurable/customizable

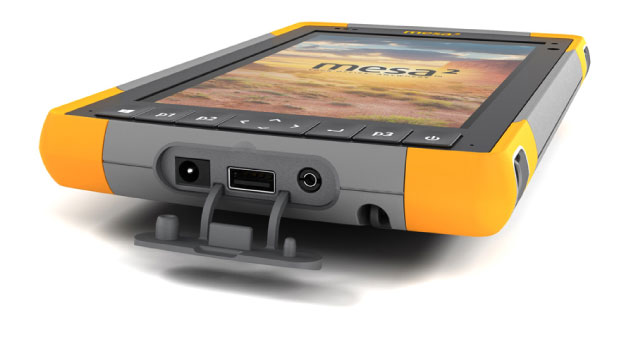

PORTS

USB 3.0 x 1

3.5 mm audio jack

12 VDC power input jack

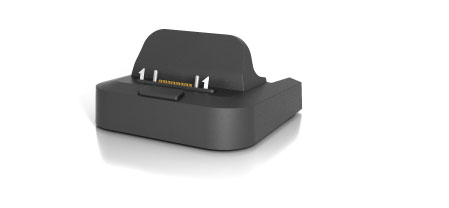

Docking port connections (Pwr, USB 2.0, & HDMI)

Loud output speaker for noisy environments

Dual digital microphone input for improved clarity

Optional RS-232 9-Pin D-Sub connector with 5VDC power output

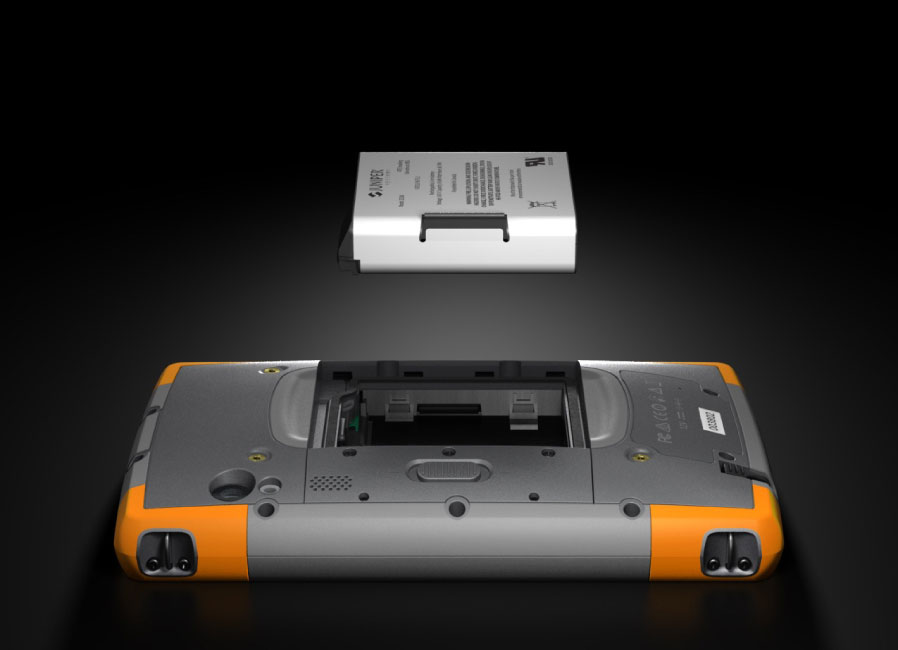

BATTERY

Removable Li-Ion battery, 39 Whr

Operates 8–10 hours on one charge

Battery easily changeable in field

Optimized for strong performance in cold temperatures

Excellent lifecycle performance

Optional built-in 19-Whr battery provides additional 4–5 hours runtime and hot-swap capability

JUNIPER RUGGED™

IP68 waterproof and dustproof

Operating Temperature: -4 F to 122 F (-20 C to 50 C)

Storage temperature: -22 F to 158 F (-30 C to 70 C)

Shockproof: multiple drops from 4′ (1.2–1.5 m) onto concrete

Designed for MIL-STD-810G test procedures: Method 500.5 Low Pressure (Altitude); Method 501.5 High Temperature; Method 502.5 Low Temperature; Method 503.5 Temperature Shock; Method 506.5 Rain; Method 507.5 Humidity; Method 510.5 Sand and Dust; Method 512.5 Immersion; Method 514.6 Vibration; Method 516.6 Shock

WIRELESS CONNECTIVITY OPTIONS

Long-range Bluetooth® Smart Ready wireless technology, v4.0 +EDR, Class 1.5, BLE support

Wi-Fi 802.11 a/b/g/n, 2.4 GHz and 5 GHz

4G LTE

CAMERA (GEO MODELS)

Rear: 8 MP with LED illumination

Front: 2 MP

Juniper Geotagging™: embed photo with date, time, and GNSS position

GPS/GNSS (GEO MODELS)

2 to 5 meter typical accuracy

uBlox NEO-M8N GNSS receiver and integrated antenna

Integrated real-time SBAS receiver (WAAS, EGNOS, etc.)

72 GNSS tracking channels

Optional: uBlox NEO-M8T w/post-processing data output and external GNSS antenna pass-through connection for sub-meter accuracy

BARCODE 1D/2D IMAGER (BARCODE MODELS)

Optional built-in barcode imager and decoder

Symbologies: all common 1D and 2D (PDF 417, MicroPDF417, Composite, RSS, TLC-39, Data matrix, QR code, Micro QR code, Aztec, MaxiCode, Postal codes, etc.)

Programmable trigger buttons

Visible aiming bullseye with low-light illumination

UHF RFID (RFID MODELS)

Optional built-in UHF RFID module and antenna

Region-specific frequency configurations (859–873 MHz & 915–930 MHz)

EPCglobal Gen 2 (ISO 18000-6C) protocol support

Wide output range (0 dBm to +27 dBm)

OTHER FEATURES

Ambient light sensor

Compass

Accelerometer

Gyroscope

TPM (Trusted Platform Module) v2.0

CERTIFICATIONS AND STANDARDS

FCC Class B

CE Marking (applicable EMC, R&TTE, and LVD directives)

Industry Canada

EN60950 Safety

RoHS 2 Compliant

WARRANTY

2-Year Warranty

Service Plans Available

Applications of the Mesa

Ranching: With a portable electronic management system, you can now take the power of electronic management in the field to effectively manage and document events. Monitor breeding groups in large pastures from horseback, ATV or pickup with the same system that you Age & Source your calves; record pregnancy test information and vaccination records and monitor saddle horse body temperature and identification.

Feedlot: Take advantage of electronic identification for management of incoming and outgoing livestock. Scan animals off the truck or place an electronic ear tag in each animal at processing and witness how easy it can be to manage all sizes of grouped animals.

Veterinarian Inspections: Disease testing is becoming more prevalent and the USDA has provided specific disease software programs for testing livestock. However, these programs have restricted use which limits the potential for electronic management outside of disease testing.

Packers:

Dairy Ranch: Managing animals from multiple birth locations, keeping records on vaccinations or treatments applied at your facility, keeping track of movements in and out of your location, tracking paper slips around the office can all be a daunting task! Put your fears of electronic management to rest and start managing these calves on a reliable and accurate electronic management system.

Equipment Monitoring: By using an electronic marker, be it a passive EID tag, or a bar code number, you can easily track all information regarding any piece of equipment; from when it last went through maintenance to who checked on it last or any current work orders for that piece of machinery.

Auction Check-in: Having a mobile device to check in auction animals provides real time identification and documentation as fast as the animals arrive. Additionally the brand inspection can be accurately completed with ease. These can then be wirelessly transmitted throughout the auction yard to the office, while the inspections can be submitted to the state.

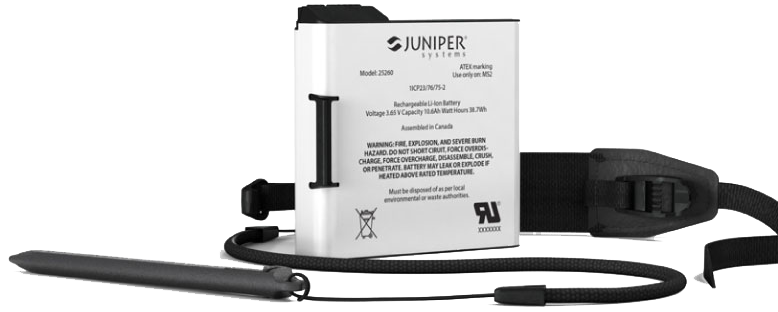

STANDARD ACCESSORIES INCLUDED WITH THE MESA 2

Standard Removable 34-Whr Lithium-Ion Battery

AC Wall Charger with International Plug Kit

Capacitive Small-tip Stylus & Tether

Quick Start Guide

Hand Strap

Connector Port Dust Cover

Shipping Box with Sleeve

2-Year Warranty
